HEMMING PRESS BRAKE DIE SET - LENGTH 36" - $250 (Stoughton)

‹ image 1 of 10 ›
HEMMING PRESS BRAKE DIE SET - LENGTH 36" 1
HEMMING PRESS BRAKE DIE SET - LENGTH 36" 1 thumbnailHEMMING PRESS BRAKE DIE SET - LENGTH 36" 2 thumbnailHEMMING PRESS BRAKE DIE SET - LENGTH 36" 3 thumbnailHEMMING PRESS BRAKE DIE SET - LENGTH 36" 4 thumbnailHEMMING PRESS BRAKE DIE SET - LENGTH 36" 5 thumbnailHEMMING PRESS BRAKE DIE SET - LENGTH 36" 6 thumbnailHEMMING PRESS BRAKE DIE SET - LENGTH 36" 7 thumbnailHEMMING PRESS BRAKE DIE SET - LENGTH 36" 8 thumbnailHEMMING PRESS BRAKE DIE SET - LENGTH 36" 9 thumbnailHEMMING PRESS BRAKE DIE SET - LENGTH 36" 10 thumbnail
Franklin Road near Old Stage Road

google map

condition: good

QR Code Link to This Post

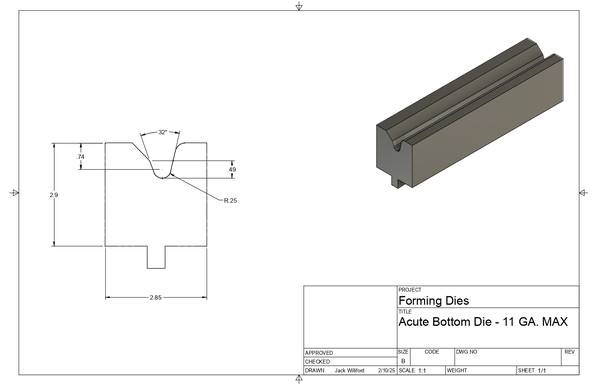

This hemming die set can forms sheet metal, recommended gauge 13-12 gauge. 11 Gauge max capacity.

Engineer setting up can decide between two different forming options.

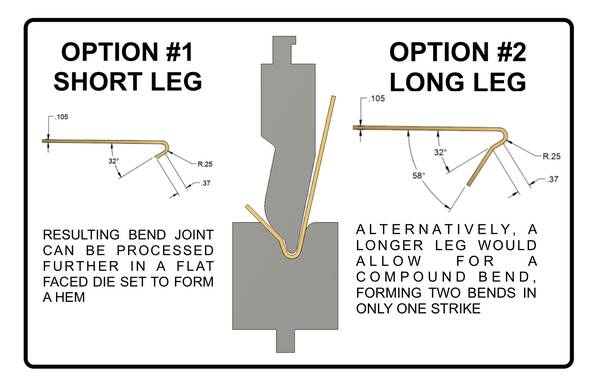

Options #1 - Short Leg

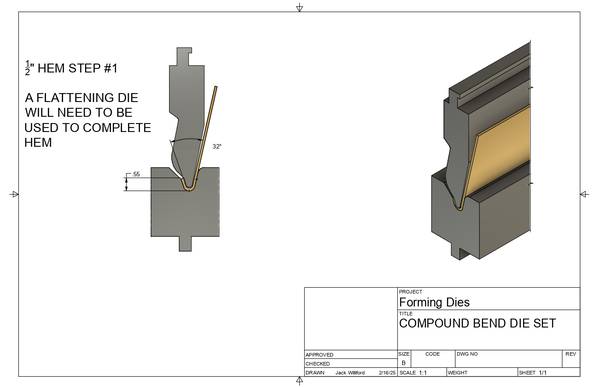

RESULTING BEND JOINT CAN BE PROCESSED FURTHER IN A FLAT FACED DIE SET TO FORM A HEM

Options #2 - Long Leg

ALTERNATIVELY, A LONGER LEG WOULD ALLOW FOR A COMPOUND BEND, FORMING TWO BENDS IN ONLY ONE STRIKE.

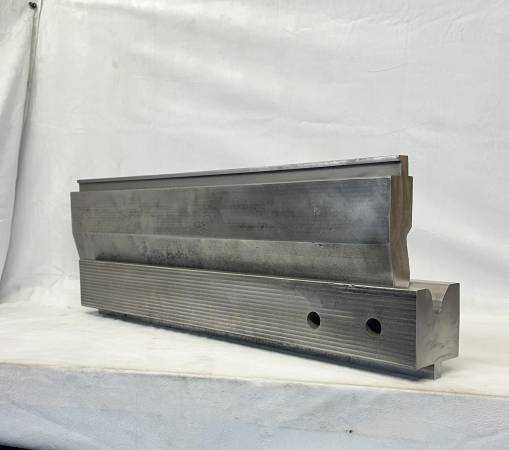

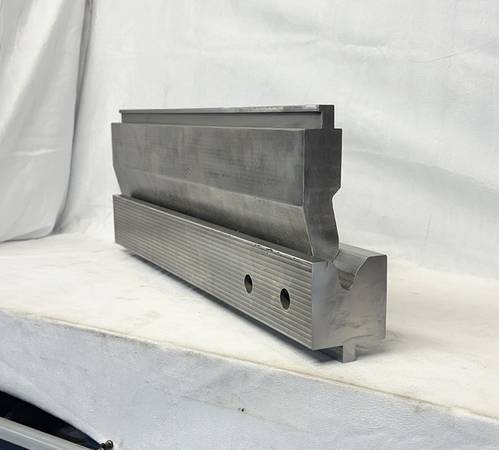

Listing Includes:

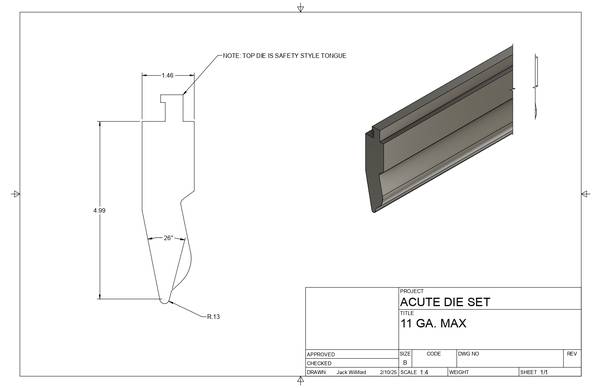

- (1x) Hemming Top Punch - Length 36"

- (1x) Hemming Bottom Die - Length 36"

ASK US ABOUT
DELIVERY FOR ONLY $50-$80

SHIPPING TO YOUR SHOP DOOR VIA SPEE-DEE DELIVERY
